Blind Rivet Dome Head - Alum body / Steel mandrel - White
Product Code: AWD4810
Head Type: Dome Head
Min Grip Range (mm): 4.5
Max Grip Range (mm): 6
Shear N: 1580
Tensile N: 2230
Body Mat: Alum
Mandrel Mat: Steel - Zinc Cr3
Hole: 4.9 mm

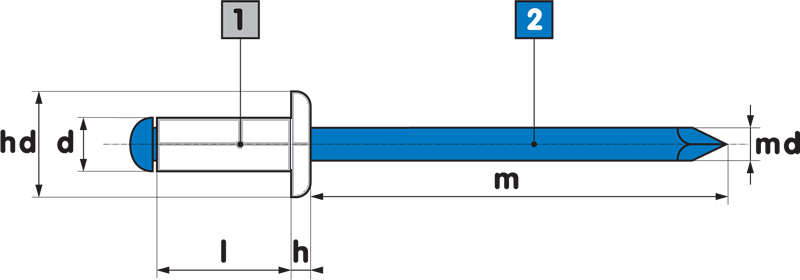

hd: 9.5 + 0.0 / -1.0mm
d: 4.8 + 0.08 / -0.15mm
l: 10mm
h: 1.1 +/ - 0.3mm
m: 27mm
md: 2.7mm
